The Condair HP unit provides adiabatic humidification and cooling in an air handling unit or duct at low energy costs. A system of nozzles located transverse to the air flow sprays water under high pressure, creating a fine mist that is quickly absorbed by the air. A droplet separator installed further downstream of the air flow removes unevaporated moisture from the air, providing drip-free humidification.

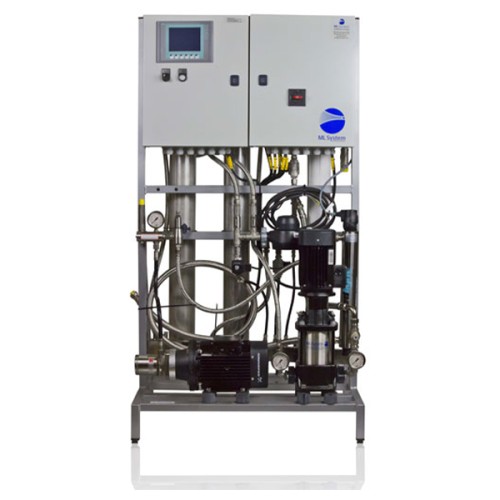

The nozzle circuits are connected to a high-pressure pumping station and a water treatment system. Demineralized water is supplied to the nozzles at a pressure of 60-70 bar. One pumping station is capable of supplying water to several nozzle circuits in several ventilation units, providing a flow rate of up to 1300 kg/h of moisture. The system provides high humidification performance and provides cooling capacity of up to 884 kW with a power consumption of only 2.2 kW.

Hygienic operation is ensured by ultraviolet sterilization and regular flushing cycles to prevent stagnation of water in the system.

Features and Benefits

Energy-efficient and efficient humidification and cooling systems

It is possible to power several humidification units from one pumping station

Humidification and evaporative cooling

High quality stainless steel construction

The system is easy to install and requires almost no maintenance
