Plate silencers are designed for use in air conditioning and ventilation systems

Reduced noise levels due to effective noise absorption

High energy efficiency thanks to aerodynamically optimized frame profile (radius > 15 mm)

Acoustic performance measured according to ISO 7235

The sound-absorbing material is biosoluble and therefore hygienically safe

Sound-absorbing material covered with fiberglass to protect against erosion at air speeds up to 20 m/s

Non-flammable sound-absorbing material, fire resistance class A1 according to EN 13501

Available in standard and custom sizes

For use in zones 1 and 2 as well as zones 21 and 22, according to EU Directive 94/9/EC (ATEX)

Operating temperature up to 100 °C

Description

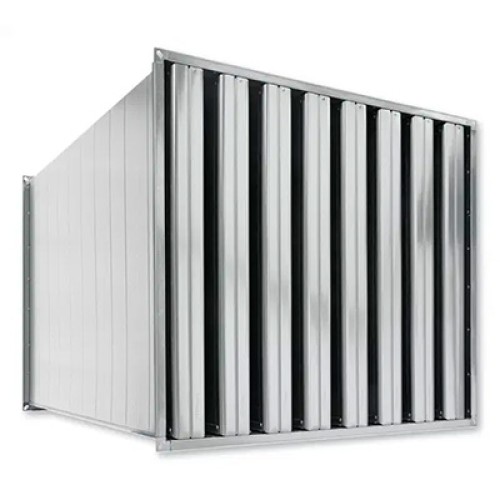

The XSA series plate silencers include the XKA series silencers. The noise-absorbing effect of XKA plates is achieved through absorption. The sound-absorbing material of the silencers is mineral wool.

Additional equipment

Additional perforated metal plate to protect the sound-absorbing material

Powder coating

Stainless steel

Aluminum alloy (AlMg3) construction, resistant to salt water
