Round air flow meters for recording or monitoring air flow
- Determining air flow manually
- Continuous air flow measurement
- Recording of measured values and their transfer to slave controllers
- Differential pressure sensor for automatic recording of measured values, installed at the factory and complete with wiring and connecting pipes
- Housing tightness according to EN 15727 class C
Additional equipment
- With flanges on both sides
- Seal
- Dynamic or static differential pressure sensors
Application

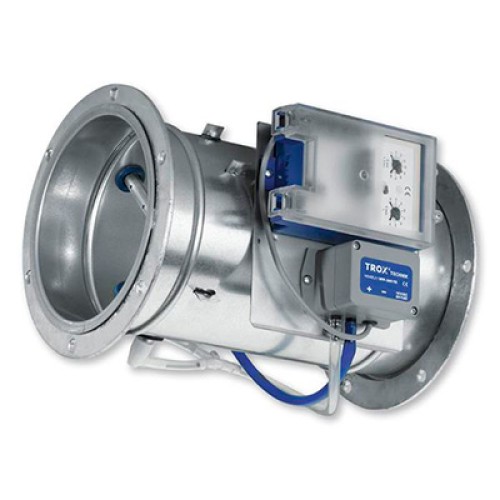

VMR series round air flow meter for recording or monitoring air flow levels in manual or automatic mode
Simplified commissioning, testing and maintenance
Can be installed as a permanent network element due to low resistance
Optional static pressure transmitter for dirty air systems
Characteristics
Measurement accuracy ± 5%
Low differential pressure 10 – 25% of measured effective pressure
Options
VMR: Air flow meter
VMR-FL: Air flow meter with flanges on both sides
Design
Galvanized sheet steel
P1: Powder coated, gray (RAL 7001)
A2: Stainless steel
Details and characteristics
The assembled device with mechanical components and optional pressure sensor is completely ready for commissioning
Average differential pressure sensor for air flow measurement
Optionally, the pressure sensor is equipped with electrical wiring and measuring tubes
High control accuracy (even when installed after turning R=1D)
